Secondary shaft gearbox bearing compatible with KTM ATV EXC EXC-F RALLY SMR SX-F XC-F XC-W

High quality gearbox bearing set with oil seals for secondary shaft

This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.

Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

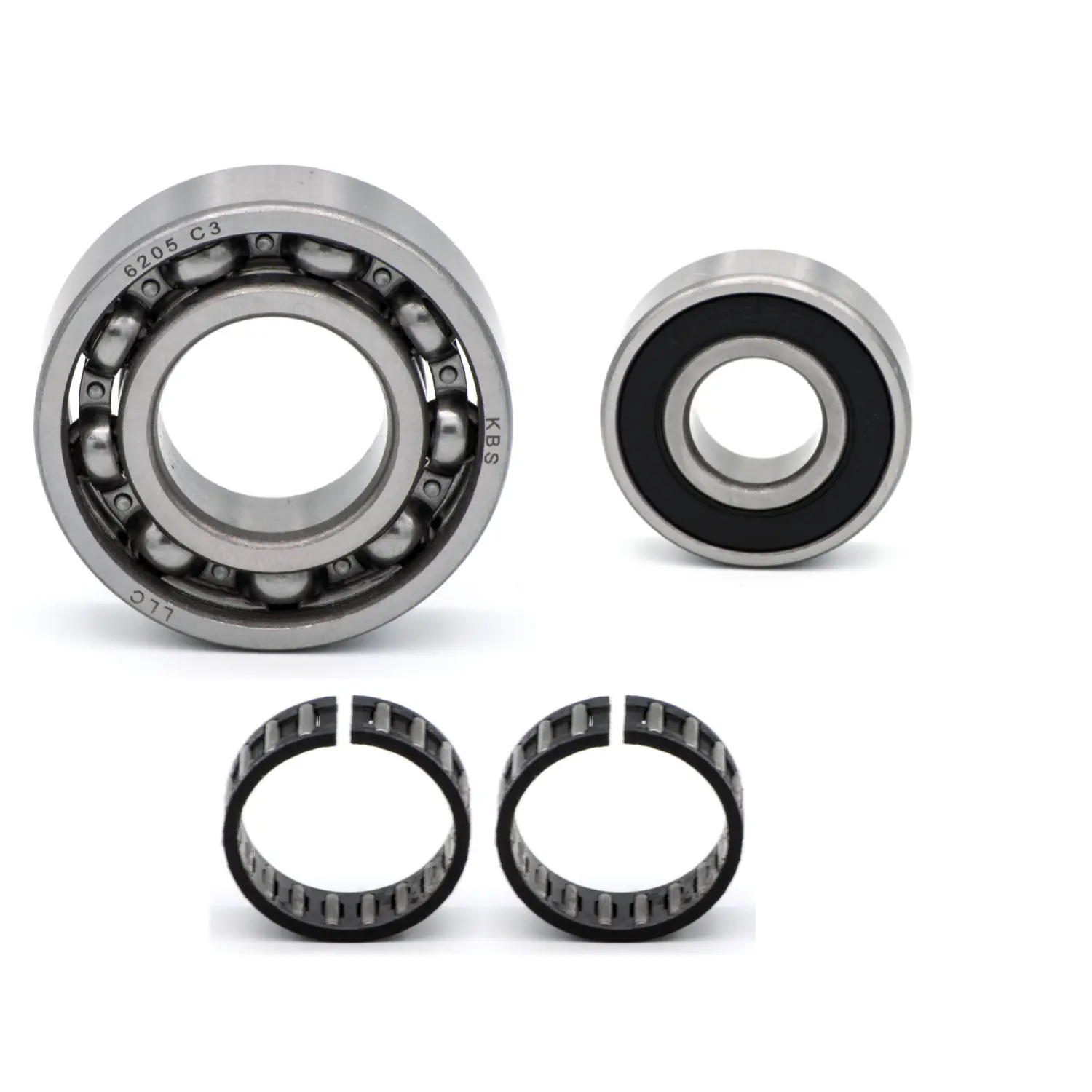

In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
2x needle roller and cage assembly needle bearing 22x26x13mm main shaft (part numbers: 0405222613)
1x deep groove ball bearing 17x40x12mm main shaft (part numbers: 0625062036)
1x deep groove ball bearing 25x52x15mm main shaft (part numbers: 0625062054)


Compatible with
ATV 450 2009-2010
ATV 505 2009-2012
EXC 400 2009-2011
EXC 450 2008-2016
EXC 500 2012-2016
EXC 530 2008-2011
EXC-F 450 2017
EXC-F 500 2017
RALLY 450 2011-2017
SMR 450 2008-2014
SX-F 450 2010-2017
XC-F 450 2008-2017
XC-F 505 2008-2009
XC-W 400 2009-2010
XC-W 450 2009-2016
XC-W 500 2012-2016
XC-W 530 2009-2011
XCR-W 450 2008
XCR-W 530 2008
