Item details
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

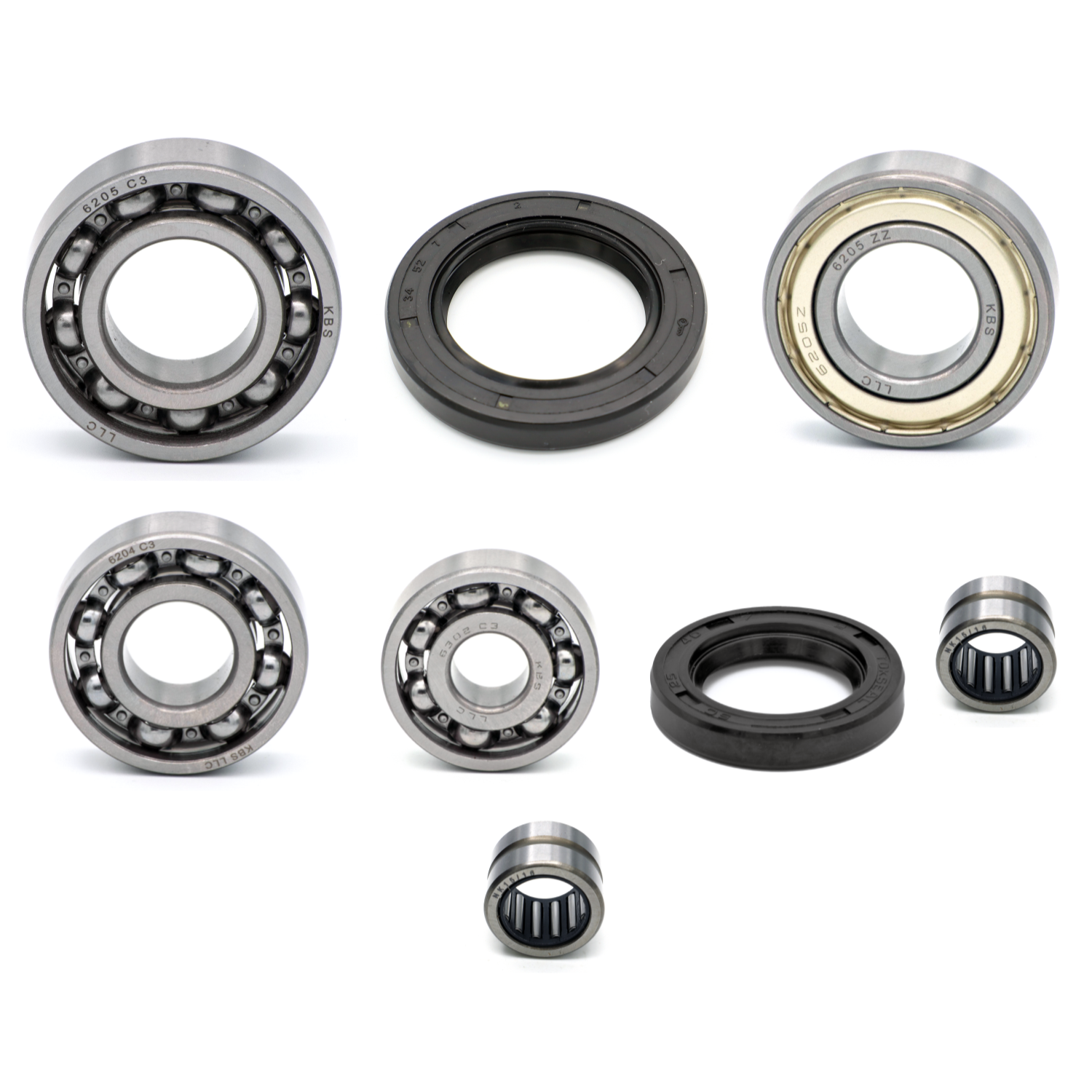

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 91009-HMC-000)
2x NK15/16 needle bearing 15x23x16mm DIN 617 ISO 1206 transmission (part numbers: 91002-HWA-000-M1)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 96100-62040-10)
1x deep groove ball bearing 15x42x13mm transmission (part numbers: 96100-63020-00)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96150-62050-10)
1x radial shaft seal 25x40x7mm NBR 70 transmission (part numbers: 91204-HMA-000)
1x radial shaft seal 34x52x6mm NBR 70 transmission (part numbers: 91203-HMA-000)
Compatible with
CRUISYM 250 2018
GTS 300 2009-2011
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 91009-HMC-000)
2x NK15/16 needle bearing 15x23x16mm DIN 617 ISO 1206 transmission (part numbers: 91002-HWA-000-M1)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 96100-62040-10)
1x deep groove ball bearing 15x42x13mm transmission (part numbers: 96100-63020-00)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96150-62050-10)
1x radial shaft seal 25x40x7mm NBR 70 transmission (part numbers: 91204-HMA-000)
1x radial shaft seal 34x52x6mm NBR 70 transmission (part numbers: 91203-HMA-000)
Compatible with
CRUISYM 250 2018
GTS 300 2009-2011
