High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

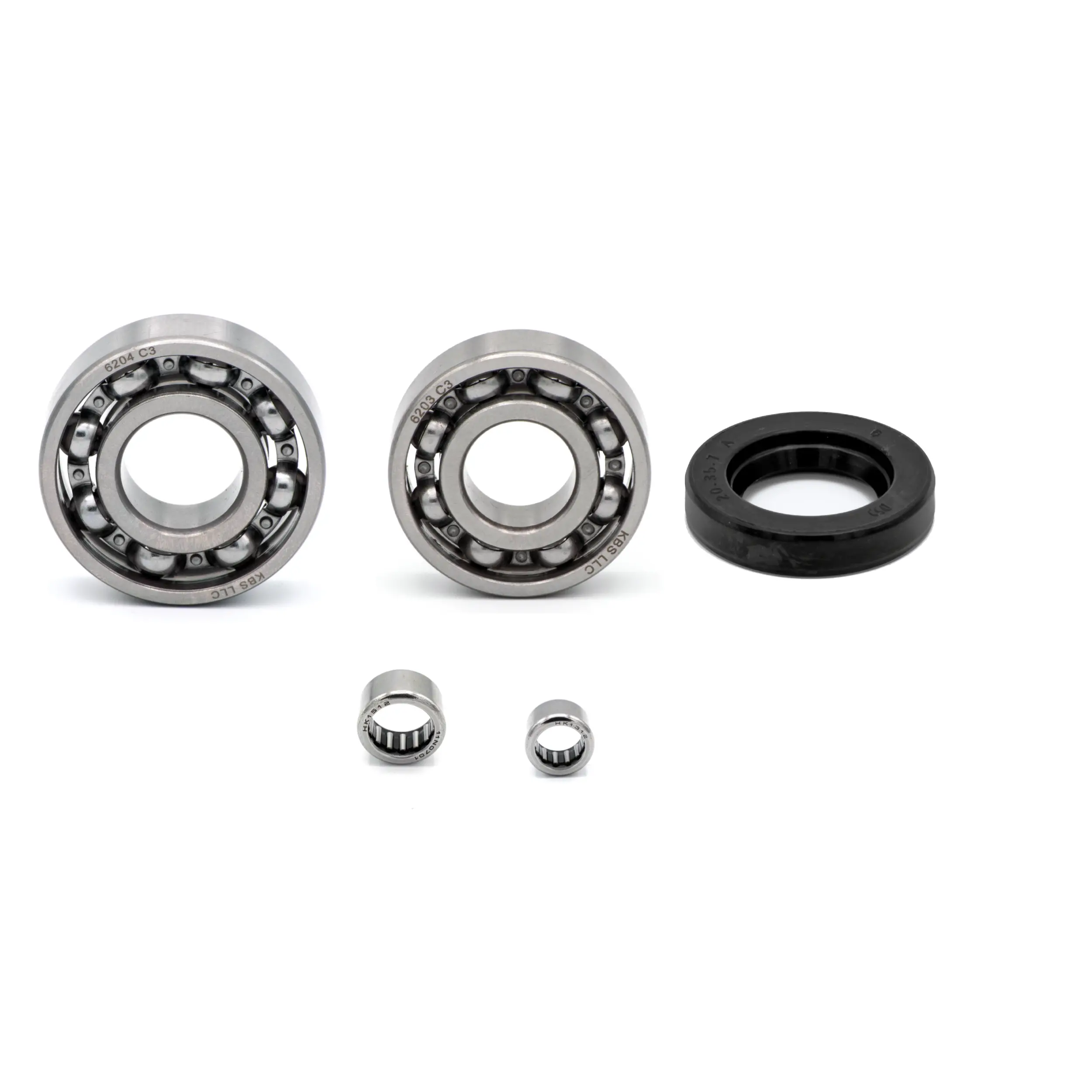

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 09262-17023-000)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 09262-20069-000, 09262-20062-000)
1x oil seal 20x35x7mm transmission (part numbers: 09283-20038-000)
1x drawn cup needle roller bearing 13x19x12mm transmission (part numbers: 09263-13001-000, 09263-13002-000)
1x drawn cup needle roller 15x21x12mm (part numbers: 09263-15019-000)
Suitable for the following vehicles:
SUZUKI
RG 50 1983-1994
RG 80 1985-1991
TS-W 50 1983-1995
TS-X 50 1984-1994
TV50 50 1991-1994
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 09262-17023-000)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 09262-20069-000, 09262-20062-000)
1x oil seal 20x35x7mm transmission (part numbers: 09283-20038-000)
1x drawn cup needle roller bearing 13x19x12mm transmission (part numbers: 09263-13001-000, 09263-13002-000)
1x drawn cup needle roller 15x21x12mm (part numbers: 09263-15019-000)
Suitable for the following vehicles:
SUZUKI
RG 50 1983-1994
RG 80 1985-1991
TS-W 50 1983-1995
TS-X 50 1984-1994
TV50 50 1991-1994
Technical Data
