Item details
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

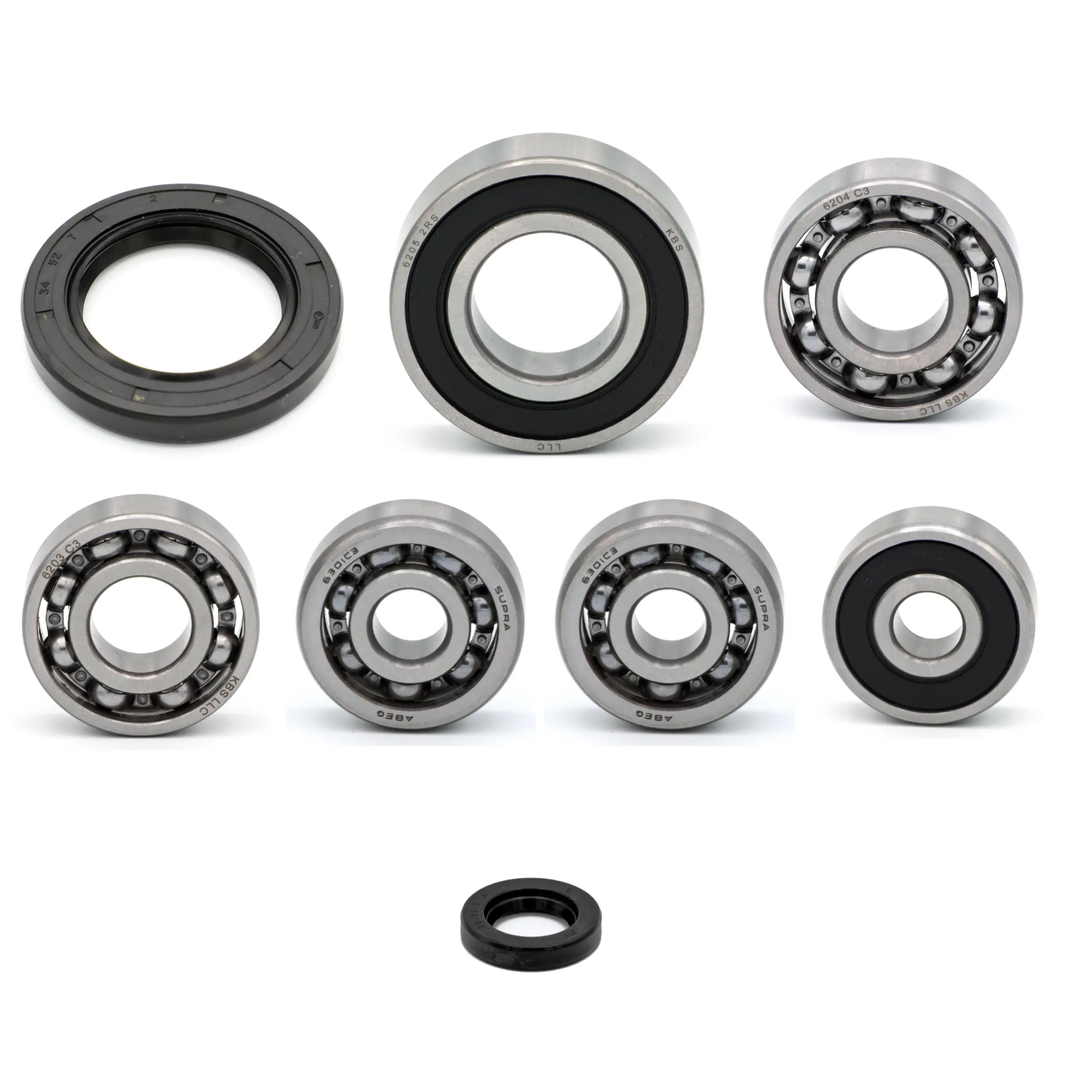

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm rear gear (part numbers: 801101 )
1x deep groove ball bearing 20x47x14mm primary gear (part numbers: 802192 )
2x deep groove ball bearing 12x37x12mm intermediate gear (part numbers: 801314 )
1x deep groove ball bearing 25x52x15mm secondary shaft (Part numbers: 802253 )
1x deep groove ball bearing 12x37x12mm primary gear (part numbers: 801097 )
1x oil seal 20x32x7mm primary shaft (part numbers: 802193 )
1x oil seal 34x52x6mm rear gear (part numbers: 760001 )
Suitable for the following vehicles:
PEUGEOT
CITYSTAR 125 AC 125 2015
DJANGO 125 ALLURE 125 2014
DJANGO 125 EVASION 125 2014
DJANGO 125 HERITAGE 125 2014
DJANGO 125 SPORT 125 2014
DJANGO 125 SPORT P 125 2018
DJANGO 125 SY EVASION 125 2018
TWEET 125 V PRO 125 2017
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm rear gear (part numbers: 801101 )
1x deep groove ball bearing 20x47x14mm primary gear (part numbers: 802192 )
2x deep groove ball bearing 12x37x12mm intermediate gear (part numbers: 801314 )
1x deep groove ball bearing 25x52x15mm secondary shaft (Part numbers: 802253 )
1x deep groove ball bearing 12x37x12mm primary gear (part numbers: 801097 )
1x oil seal 20x32x7mm primary shaft (part numbers: 802193 )
1x oil seal 34x52x6mm rear gear (part numbers: 760001 )
Suitable for the following vehicles:
PEUGEOT
CITYSTAR 125 AC 125 2015
DJANGO 125 ALLURE 125 2014
DJANGO 125 EVASION 125 2014
DJANGO 125 HERITAGE 125 2014
DJANGO 125 SPORT 125 2014
DJANGO 125 SPORT P 125 2018
DJANGO 125 SY EVASION 125 2018
TWEET 125 V PRO 125 2017
