Item details
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

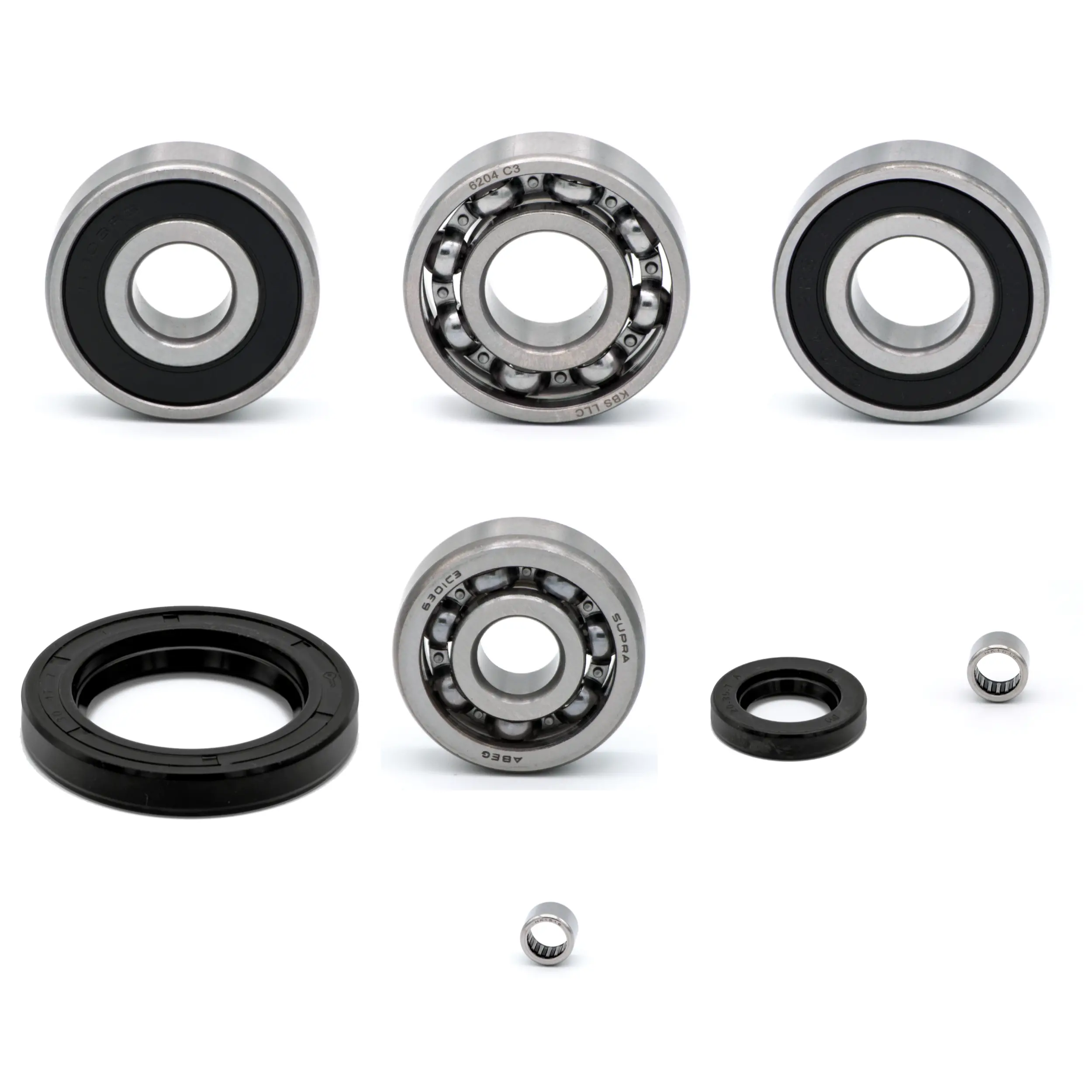

All bearings and oil seals in the gearbox are included in this bearing set:
1x oil seal 20x32x7mm primary shaft (part numbers: 82539R)
1x deep groove ball bearing 17x47x14mm primary shaft (part numbers: 82545R)
1x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 833701)
1x drawn cup needle roller bearing 16x22x16mm secondary shaft (part numbers: 174710)
1x drawn cup needle roller bearing 15x21x16mm primary shaft (part numbers: 430228)
1x deep groove ball bearing 12x37x12mm primary shaft (part numbers: 431256)
1x oil seal 30x47x7mm primary shaft (part numbers: 478498)
1x deep groove ball bearing 20x47x14mm rear wheel bearing (part numbers: 434735)
Suitable for the following vehicles:
GILERA
RUNNER 125 1998-2002
RUNNER 180 1998-2002
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x oil seal 20x32x7mm primary shaft (part numbers: 82539R)
1x deep groove ball bearing 17x47x14mm primary shaft (part numbers: 82545R)
1x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 833701)
1x drawn cup needle roller bearing 16x22x16mm secondary shaft (part numbers: 174710)
1x drawn cup needle roller bearing 15x21x16mm primary shaft (part numbers: 430228)
1x deep groove ball bearing 12x37x12mm primary shaft (part numbers: 431256)
1x oil seal 30x47x7mm primary shaft (part numbers: 478498)
1x deep groove ball bearing 20x47x14mm rear wheel bearing (part numbers: 434735)
Suitable for the following vehicles:
GILERA
RUNNER 125 1998-2002
RUNNER 180 1998-2002
Technical Data
