Gearbox bearing compatible with derbi DXR 200 CC VTHSM1B1A DXR QUAD 200 CC

High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.

Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

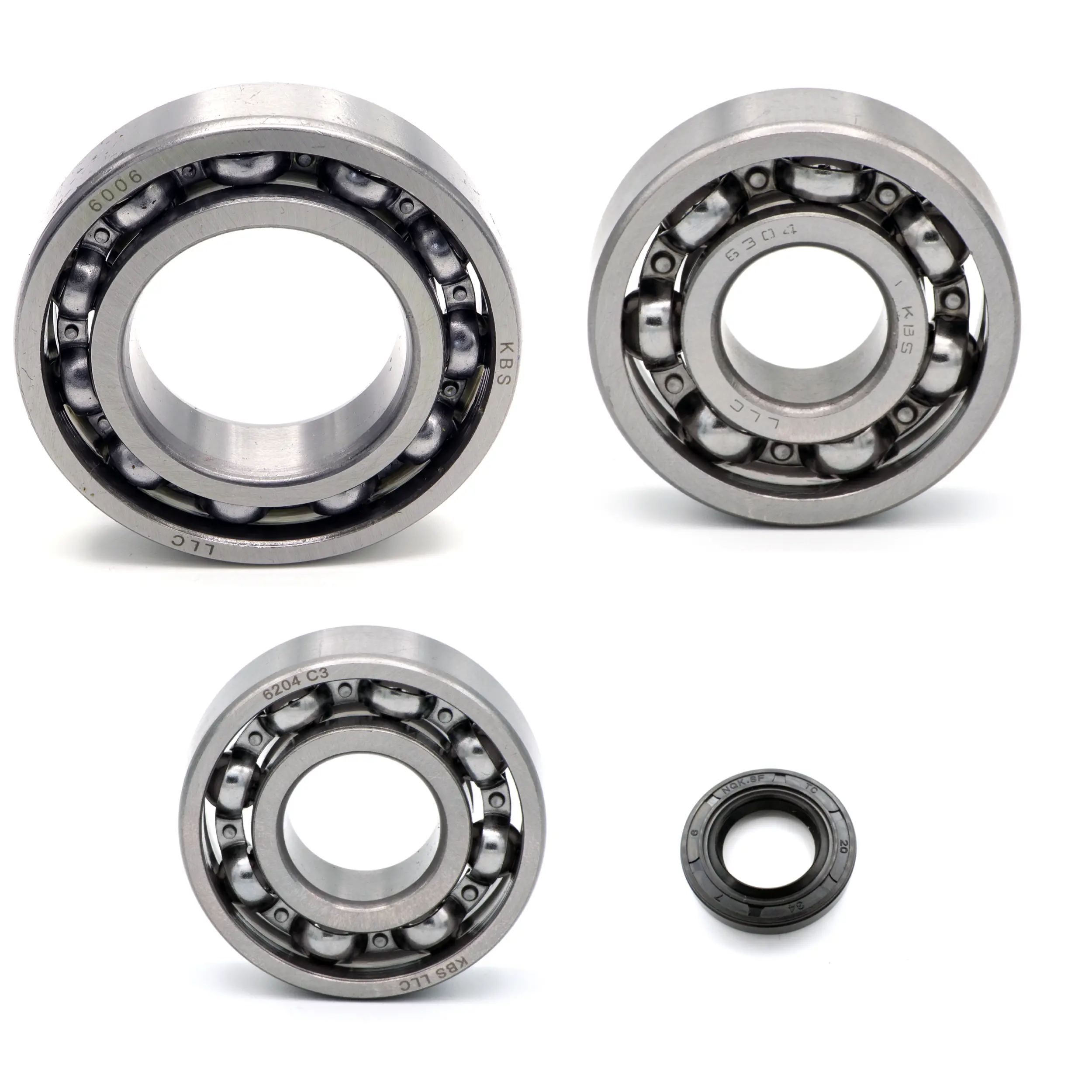

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x52x15mm transmission (part numbers: 00Q25001369 )
1x oil seal 20x34x7mm transmission (part numbers: 00Q20001141 )
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 00Q20001153 )
1x deep groove ball bearing 30x55x13mm transmission (part numbers: 00Q20001156 )


Compatible with
DERBI
DXR 200 CC VTHSM1B1A 200 2005
DXR QUAD 200 CC 200 2004
