Item details
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

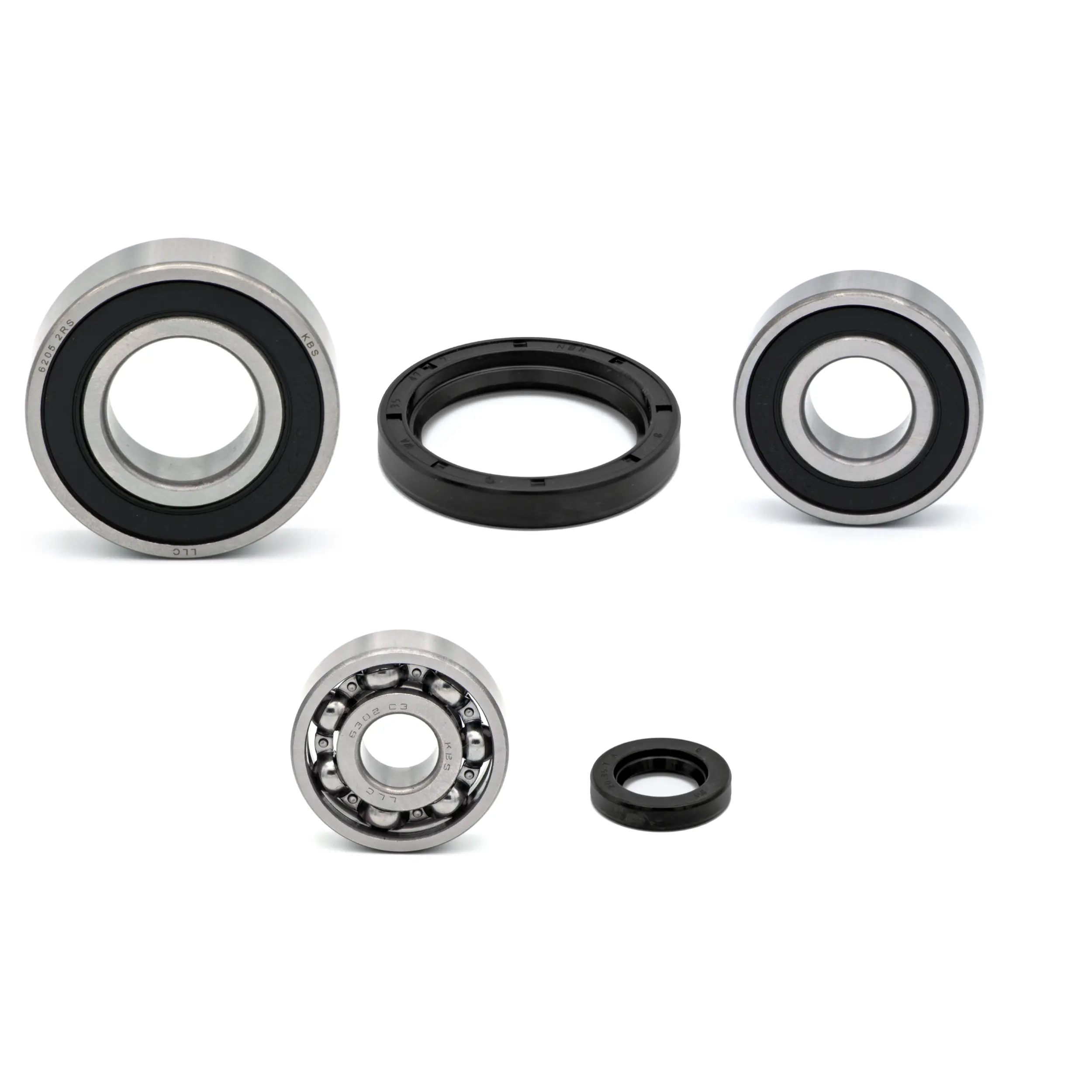

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 485913 )
1x oil seal 20x32x7mm transmission (part numbers: 82878R )
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 478984 )
1x deep groove ball bearing 15x42x13mm transmission (part numbers: 485912 )
1x oil seal 35x47x7mm transmission (part numbers: 82899R )
Compatible with
DERBI
BOULEVARD 125 CC 4T EU3 125 2008-2012
BOULEVARD 125 CC VTHM57100 4T AC 125 2008
BOULEVARD 125 CC VTHM57100 EURO 3 4T AC 125 2009-2012
BOULEVARD 150 CC VTHM57200 4T AC 150 2010
RAMBLA 125 CC VTHRA1A 4T 4V LC 125 2009
RAMBLA 250 CC VTHRA1B 4T 4V LC 250 2009
RAMBLA 300 CC VTHRA1C 4T 4V LC 300 2010
SONAR 125 CC VTHLS1A1A 2T AC 125 2010-2011
SONAR 125 CC VTHLS1A1A 4T 125 2009-2011
SONAR 150 CC VTHLS3A1A 2T AC 150 2010
SONAR 150 CC VTHLS3A1A 4T 150 2009
VARIANT SPORT 125 CC VTHSG000 4T E3 125 2012
VARIANT SPORT 125 CC ZDPSG000 EURO 3 4T AC 125 2012
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 485913 )
1x oil seal 20x32x7mm transmission (part numbers: 82878R )
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 478984 )
1x deep groove ball bearing 15x42x13mm transmission (part numbers: 485912 )
1x oil seal 35x47x7mm transmission (part numbers: 82899R )
Compatible with
DERBI
BOULEVARD 125 CC 4T EU3 125 2008-2012
BOULEVARD 125 CC VTHM57100 4T AC 125 2008
BOULEVARD 125 CC VTHM57100 EURO 3 4T AC 125 2009-2012
BOULEVARD 150 CC VTHM57200 4T AC 150 2010
RAMBLA 125 CC VTHRA1A 4T 4V LC 125 2009
RAMBLA 250 CC VTHRA1B 4T 4V LC 250 2009
RAMBLA 300 CC VTHRA1C 4T 4V LC 300 2010
SONAR 125 CC VTHLS1A1A 2T AC 125 2010-2011
SONAR 125 CC VTHLS1A1A 4T 125 2009-2011
SONAR 150 CC VTHLS3A1A 2T AC 150 2010
SONAR 150 CC VTHLS3A1A 4T 150 2009
VARIANT SPORT 125 CC VTHSG000 4T E3 125 2012
VARIANT SPORT 125 CC ZDPSG000 EURO 3 4T AC 125 2012
