Gearbox bearing compatible with SYM ALLO CELLO CROX FIDDLE JET MIO ORBIT SYMPHONY

High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.

Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

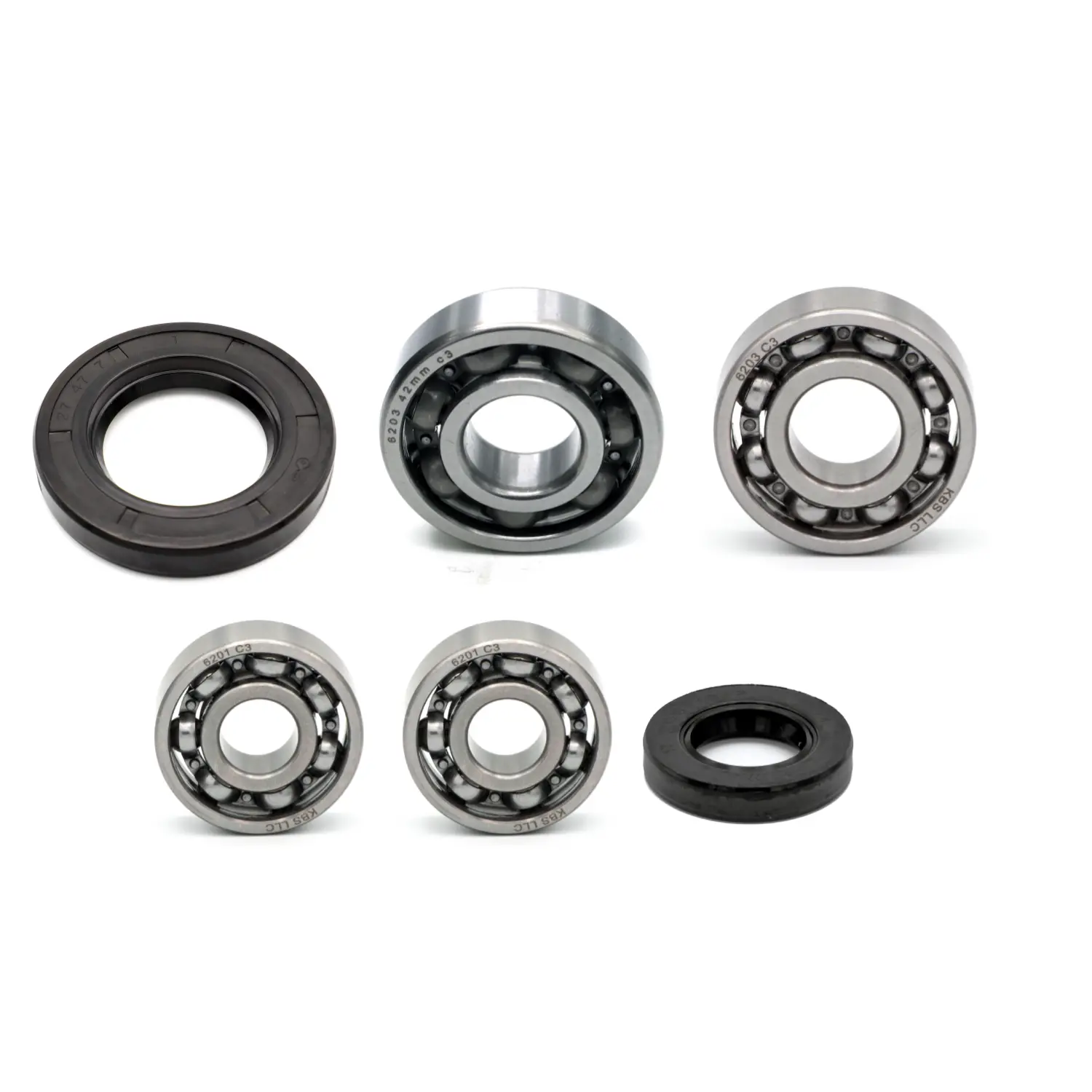

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x42x12mm drive shaft (part numbers: 91004-TFB-000, 91004-KBN-921-M2, 91004-KBN-921-M1)
1x deep groove ball bearing 12x32x10mm drive shaft (part numbers: 91006-A1A-300)
1x deep groove ball bearing 12x32x10mm drive shaft (part numbers: 96100-62010-00, 96100-62013-00)
1x deep groove ball bearing 17x40x12mm drive shaft (part numbers: 96100-62030-00, 96100-62033-10)
1x shaft seal 17x30x6mm drive shaft (part numbers: 91206-A1A-000, 91206-AMA-000)
1x shaft seal 27x47x7mm drive shaft (part numbers: 91255-GE0-003)


Compatible with
ALLO 50 2011-2018
CELLO 50 2009-2015
CROX 50 2014-2020
FIDDLE 50 2004-2020
JET 50 2009-2015
MIO 50 2018-2020
ORBIT 50 2009-2015
SYMPHONY 50 2017
