Gearbox bearing compatible with Suzuki VL BOULEVARD VL INTRUDER VZ BOULEVARD

High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.

Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

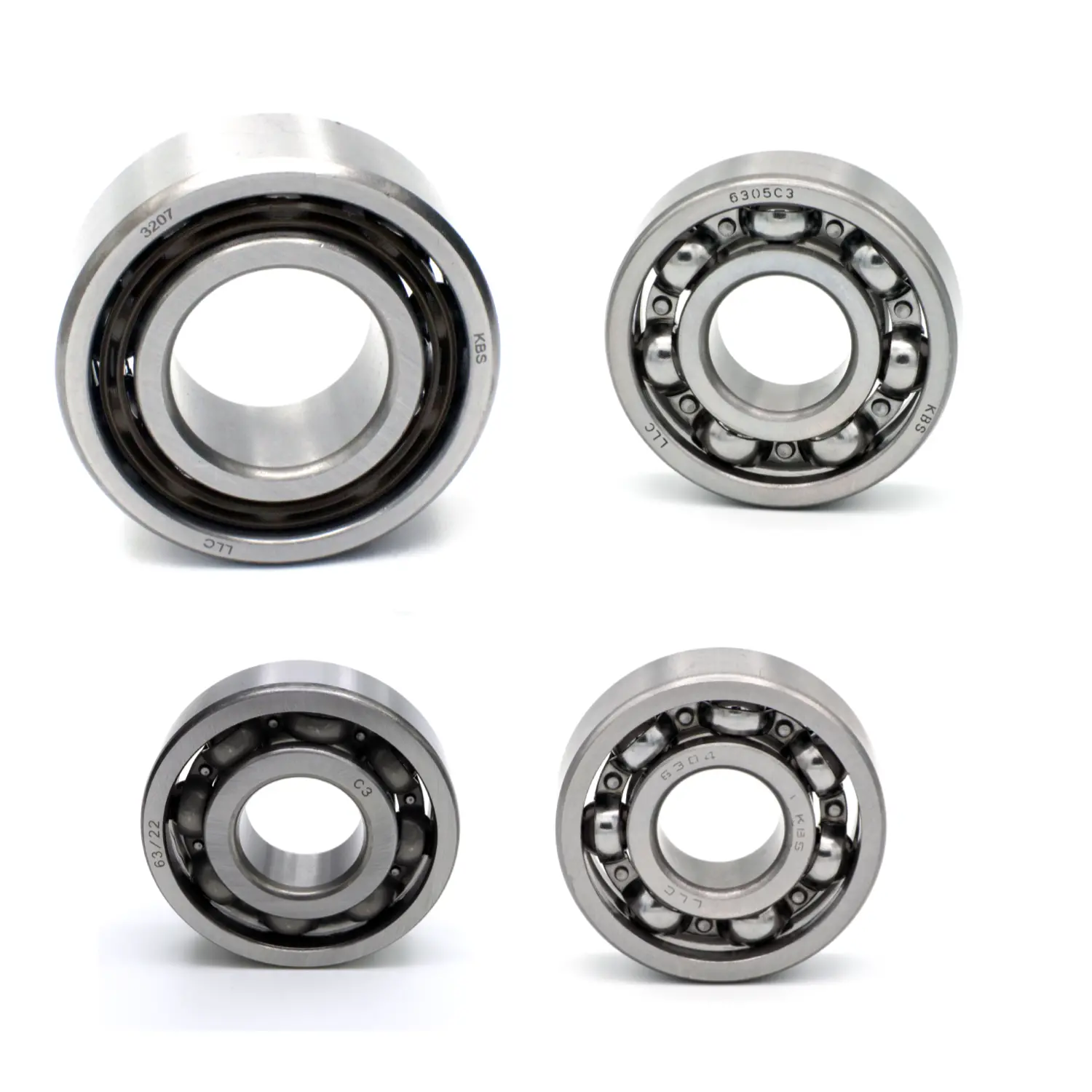

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x52x15mm transmission (part numbers: 09262-20080-000)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 09262-25153-000)
1x angular contact ball bearing 35x72x27mm transmission (part numbers: 09267-35004-000)
1x deep groove ball bearing 22x56x16mm transmission (part numbers: 09262-22024-000)


Compatible with
VL BOULEVARD 1500 2013-2017
VL INTRUDER 1500 2013-2017
VZ BOULEVARD 1500 2009-2019
