Item details
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

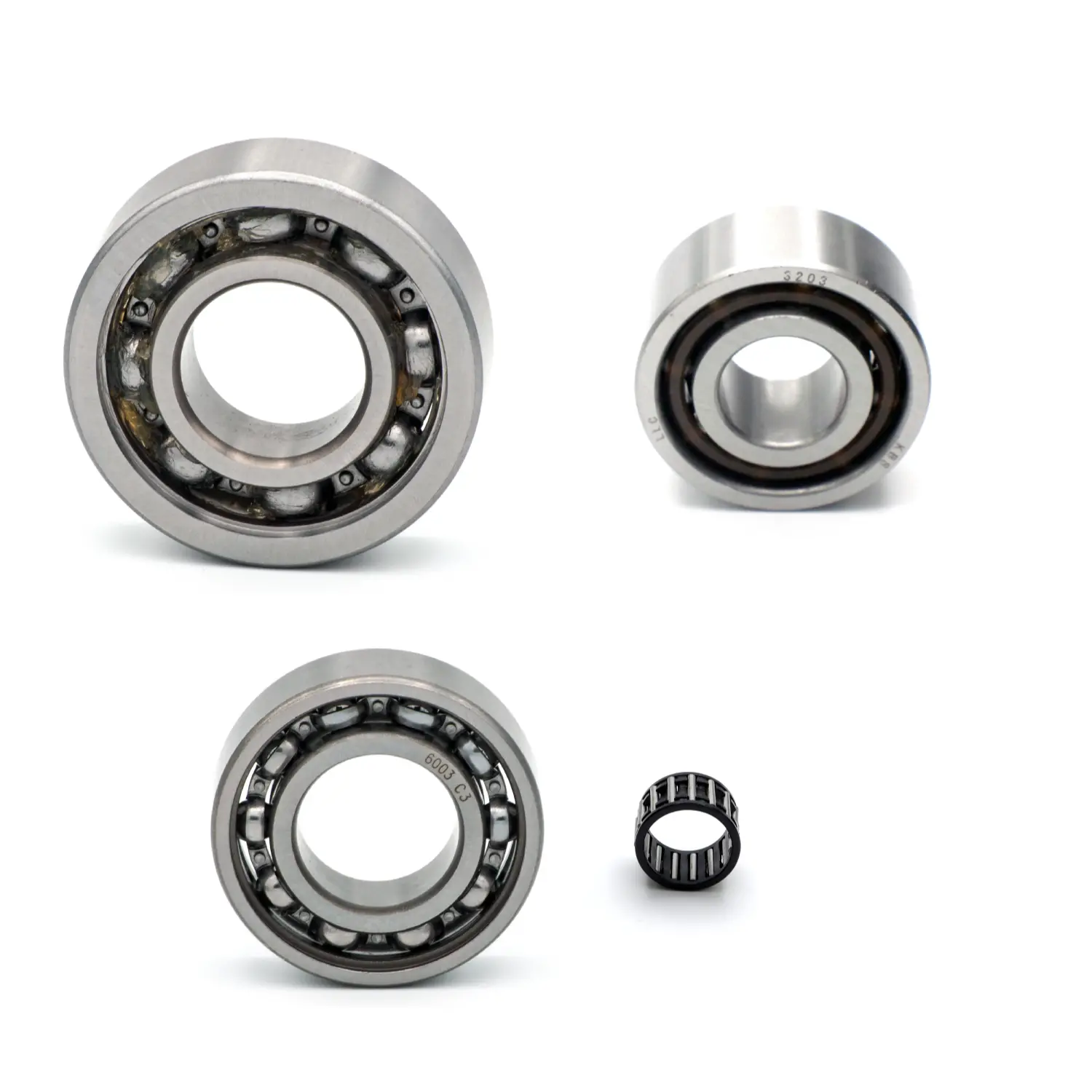

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x35x10mm transmission (part numbers: 09262-17026-000)
1x deep groove ball bearing 22x50x14mm transmission (part numbers: 09262-22018-000)
1x angular contact ball bearing 17x40x17.5mm transmission (part numbers: 09267-17002-000)
1x needle roller and cage assembly needle bearing 17x21x12,8mm transmission (part numbers: 09263-17001-000)
Compatible with
EIGER 400 2009
KINGQUAD 400 2008-2020
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x35x10mm transmission (part numbers: 09262-17026-000)
1x deep groove ball bearing 22x50x14mm transmission (part numbers: 09262-22018-000)
1x angular contact ball bearing 17x40x17.5mm transmission (part numbers: 09267-17002-000)
1x needle roller and cage assembly needle bearing 17x21x12,8mm transmission (part numbers: 09263-17001-000)
Compatible with
EIGER 400 2009
KINGQUAD 400 2008-2020
