High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

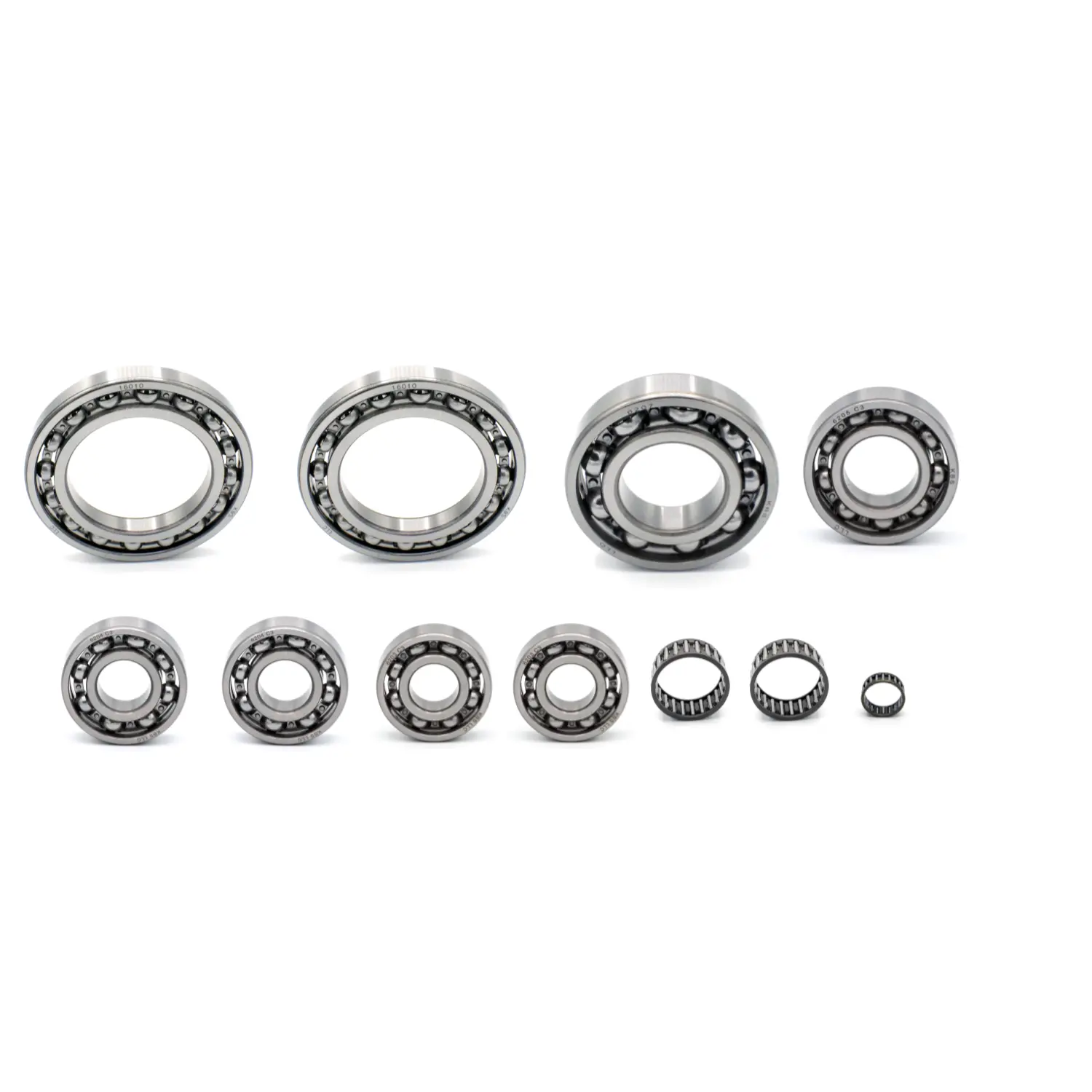

All bearings and oil seals in the gearbox are included in this bearing set:
2x needle roller and cage assembly needle bearing 25x29x10mm transmission (part numbers: 3233103)
2x deep groove ball bearing 50x80x10mm transmission (part numbers: 3234275)
2x deep groove ball bearing 17x40x12mm transmission (part numbers: 3234274)
2x deep groove ball bearing 20x47x14mm transmission (part numbers: 3233018)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 3233019)
1x deep groove ball bearing 35x72x17mm transmission (part numbers: 3234065)
1x needle bearing 22x26x10mm transmission (part numbers: 3233009)
Compatible with
RANGER 400 4X4 - R12RH45AG/AH/AR Polaris RANGER 400 2012
RANGER 400 HO - R11RH45AG/AH/AR Polaris RANGER 400 2011
RANGER 400 MIDSIZE Polaris RANGER 400 2013
RANGER 4X4 400 HO - R10RH45AG/AH/AR Polaris RANGER 400 2010
RANGER 4X4 400 Polaris RANGER 400 2014
RANGER 4X4 500 CREW - R11WH50AG/AH/AR Polaris RANGER 500 2011
RANGER 4X4 500 EFI - R10TH50AG/AR Polaris RANGER 500 2010
RANGER 4X4 500 EFI - R11RH50AG/AH/AR Polaris RANGER 500 2011
RANGER 4X4 800 EFI ALL OPTIONS - R10TH76/TY76 Polaris RANGER 800 2010
RANGER 4X4 800 EFI ALL OPTIONS - R11TH76/TY76 Polaris RANGER 800 2011
RANGER 4X4 800 EFI CREW - R10WH76AG/AH/AR/AV/WY76AW/AZ Polaris RANGER 800 2010
RANGER 4X4 800 EFI CREW - R11WH76AG/AR/WY76AE/AH/AJ Polaris RANGER 800 2011
RANGER 500 4X4 - R12RH50AG/AH/AM/AR/AZ Polaris RANGER 500 2012
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR Polaris RANGER 500 2012
RANGER 500 CREW MIDSIZE - R13WH50AG/AH/AR/AX Polaris RANGER 500 2013
RANGER 500 MIDSIZE - R13RH50AG/AH/AM/AR Polaris RANGER 500 2013
RANGER 800 - R14TH76AA/AC/EAS/AAC/ACC/EASC Polaris RANGER 800 2014
RANGER 800 CREW - R13WH76AG/AR/EAH/EAI Polaris RANGER 800 2013
RANGER 800 CREW Polaris RANGER 800 2014
RANGER 800 EFI - R13TH76/7E Polaris RANGER 800 2013
RANGER 800 EFI MIDSIZE - R13RH76AG/AH/AN Polaris RANGER 800 2013
RANGER 800 EFI MIDSIZE - R14RH76AA/76AC/7EAZ Polaris RANGER 800 2014
RANGER CREW 800 - R12WH76AG/AR/EAH/EAV/EAW Polaris RANGER 800 2012
RANGER XP 800 - R12TH76/TH7E/TX7E Polaris RANGER 800 2012
SPORTSMAN TOURING 500 HO - A10DH50AX/AZ 500 2010
SPORTSMAN TOURING 500 HO - A11DH50AX/AZ 500 2011
SPORTSMAN TOURING 500 HO - A12DH50AX/AZ 500 2012
SPORTSMAN TOURING 500 HO - A13DH50AX/AZ 500 2013
SPORTSMAN TOURING 500 HO INTL 500 2010-2011
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
2x needle roller and cage assembly needle bearing 25x29x10mm transmission (part numbers: 3233103)
2x deep groove ball bearing 50x80x10mm transmission (part numbers: 3234275)
2x deep groove ball bearing 17x40x12mm transmission (part numbers: 3234274)
2x deep groove ball bearing 20x47x14mm transmission (part numbers: 3233018)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 3233019)
1x deep groove ball bearing 35x72x17mm transmission (part numbers: 3234065)
1x needle bearing 22x26x10mm transmission (part numbers: 3233009)
Compatible with
RANGER 400 4X4 - R12RH45AG/AH/AR Polaris RANGER 400 2012
RANGER 400 HO - R11RH45AG/AH/AR Polaris RANGER 400 2011
RANGER 400 MIDSIZE Polaris RANGER 400 2013
RANGER 4X4 400 HO - R10RH45AG/AH/AR Polaris RANGER 400 2010
RANGER 4X4 400 Polaris RANGER 400 2014
RANGER 4X4 500 CREW - R11WH50AG/AH/AR Polaris RANGER 500 2011
RANGER 4X4 500 EFI - R10TH50AG/AR Polaris RANGER 500 2010
RANGER 4X4 500 EFI - R11RH50AG/AH/AR Polaris RANGER 500 2011
RANGER 4X4 800 EFI ALL OPTIONS - R10TH76/TY76 Polaris RANGER 800 2010
RANGER 4X4 800 EFI ALL OPTIONS - R11TH76/TY76 Polaris RANGER 800 2011
RANGER 4X4 800 EFI CREW - R10WH76AG/AH/AR/AV/WY76AW/AZ Polaris RANGER 800 2010
RANGER 4X4 800 EFI CREW - R11WH76AG/AR/WY76AE/AH/AJ Polaris RANGER 800 2011
RANGER 500 4X4 - R12RH50AG/AH/AM/AR/AZ Polaris RANGER 500 2012
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR Polaris RANGER 500 2012
RANGER 500 CREW MIDSIZE - R13WH50AG/AH/AR/AX Polaris RANGER 500 2013
RANGER 500 MIDSIZE - R13RH50AG/AH/AM/AR Polaris RANGER 500 2013
RANGER 800 - R14TH76AA/AC/EAS/AAC/ACC/EASC Polaris RANGER 800 2014
RANGER 800 CREW - R13WH76AG/AR/EAH/EAI Polaris RANGER 800 2013
RANGER 800 CREW Polaris RANGER 800 2014
RANGER 800 EFI - R13TH76/7E Polaris RANGER 800 2013
RANGER 800 EFI MIDSIZE - R13RH76AG/AH/AN Polaris RANGER 800 2013
RANGER 800 EFI MIDSIZE - R14RH76AA/76AC/7EAZ Polaris RANGER 800 2014
RANGER CREW 800 - R12WH76AG/AR/EAH/EAV/EAW Polaris RANGER 800 2012
RANGER XP 800 - R12TH76/TH7E/TX7E Polaris RANGER 800 2012
SPORTSMAN TOURING 500 HO - A10DH50AX/AZ 500 2010
SPORTSMAN TOURING 500 HO - A11DH50AX/AZ 500 2011
SPORTSMAN TOURING 500 HO - A12DH50AX/AZ 500 2012
SPORTSMAN TOURING 500 HO - A13DH50AX/AZ 500 2013
SPORTSMAN TOURING 500 HO INTL 500 2010-2011
