Item details
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

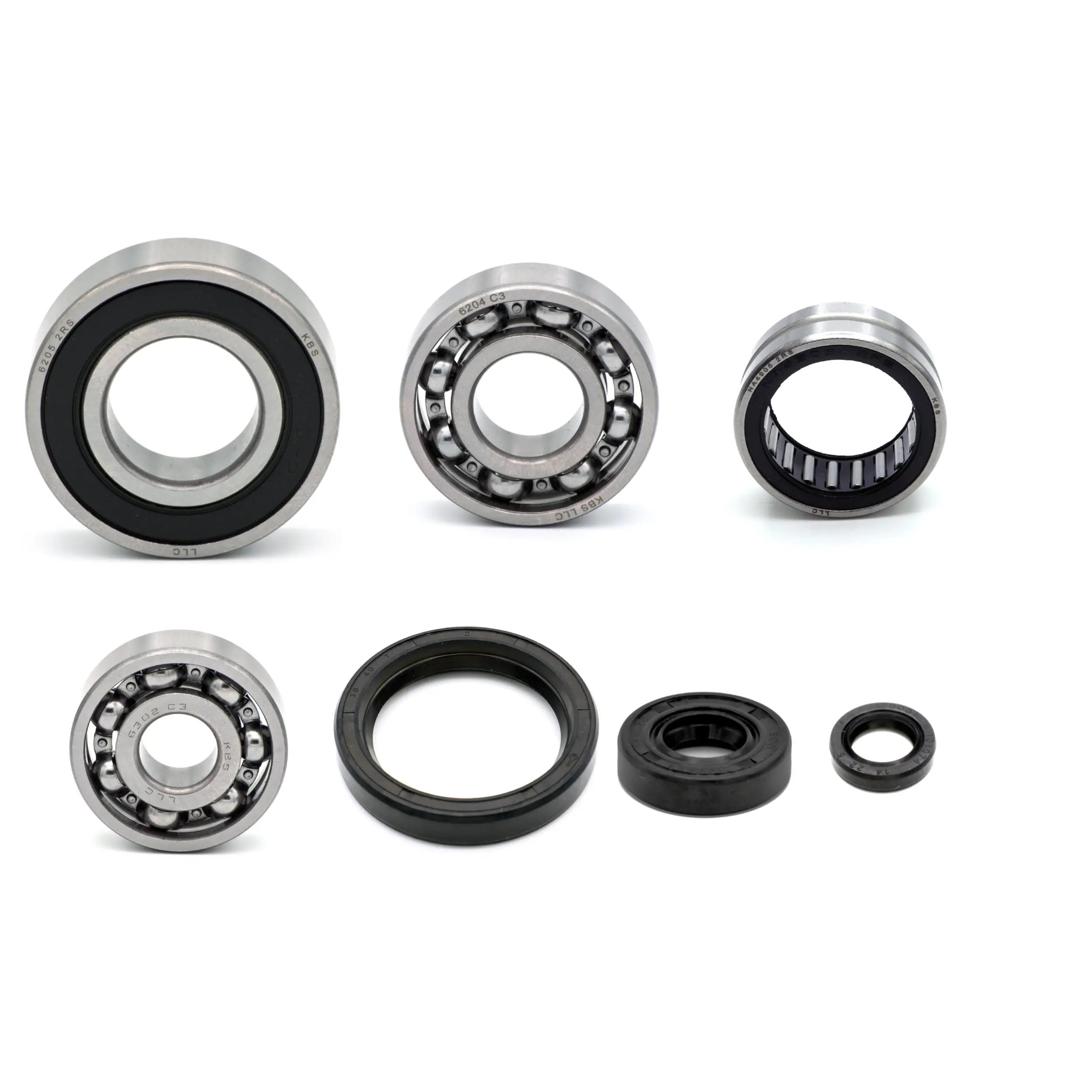

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm gearbox housing (part numbers: 3050323)
1x deep groove ball bearing 15x42x13mm gearbox housing (part numbers: 3050342)
1x deep groove ball bearing 25x52x15mm gear case (part numbers: 3050300)
1x oil seal 14x28x7mm gear case (part numbers: 3050310)
1x oil seal 30x40x7mm gear case (part numbers: 3050299)
1x oil seal 14x22x5mm gear case (part numbers: 3050309)
1x drawn cup needle roller bearing without inner ring 30x42x17mm gear case (part numbers: 3050297)
Compatible with
ACE 150 150 2017
ACE 150 EFI 150 2021
ACE 150 EFI 501S INDY 150 2018
ACE 150 EFI INDY 150 2019
ACE 150 EFI INDY MD 150 2019
ACE 150 EFI MD 150 2021
ACE 150 MD 150 2017-2018
ATV RANGER 150 EFI 150 2020
RANGER 150 EFI 150 2021
RANGER 150 EFI MD 150 2021
RANGER 150 EFI MD Polaris RANGER 150 2018-2019
RANGER 150 EFI Polaris RANGER 150 2018-2019
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm gearbox housing (part numbers: 3050323)
1x deep groove ball bearing 15x42x13mm gearbox housing (part numbers: 3050342)
1x deep groove ball bearing 25x52x15mm gear case (part numbers: 3050300)
1x oil seal 14x28x7mm gear case (part numbers: 3050310)
1x oil seal 30x40x7mm gear case (part numbers: 3050299)
1x oil seal 14x22x5mm gear case (part numbers: 3050309)
1x drawn cup needle roller bearing without inner ring 30x42x17mm gear case (part numbers: 3050297)
Compatible with
ACE 150 150 2017
ACE 150 EFI 150 2021
ACE 150 EFI 501S INDY 150 2018
ACE 150 EFI INDY 150 2019
ACE 150 EFI INDY MD 150 2019
ACE 150 EFI MD 150 2021
ACE 150 MD 150 2017-2018
ATV RANGER 150 EFI 150 2020
RANGER 150 EFI 150 2021
RANGER 150 EFI MD 150 2021
RANGER 150 EFI MD Polaris RANGER 150 2018-2019
RANGER 150 EFI Polaris RANGER 150 2018-2019
