Gearbox bearing compatible with Honda CG NX XL XR

High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.

Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

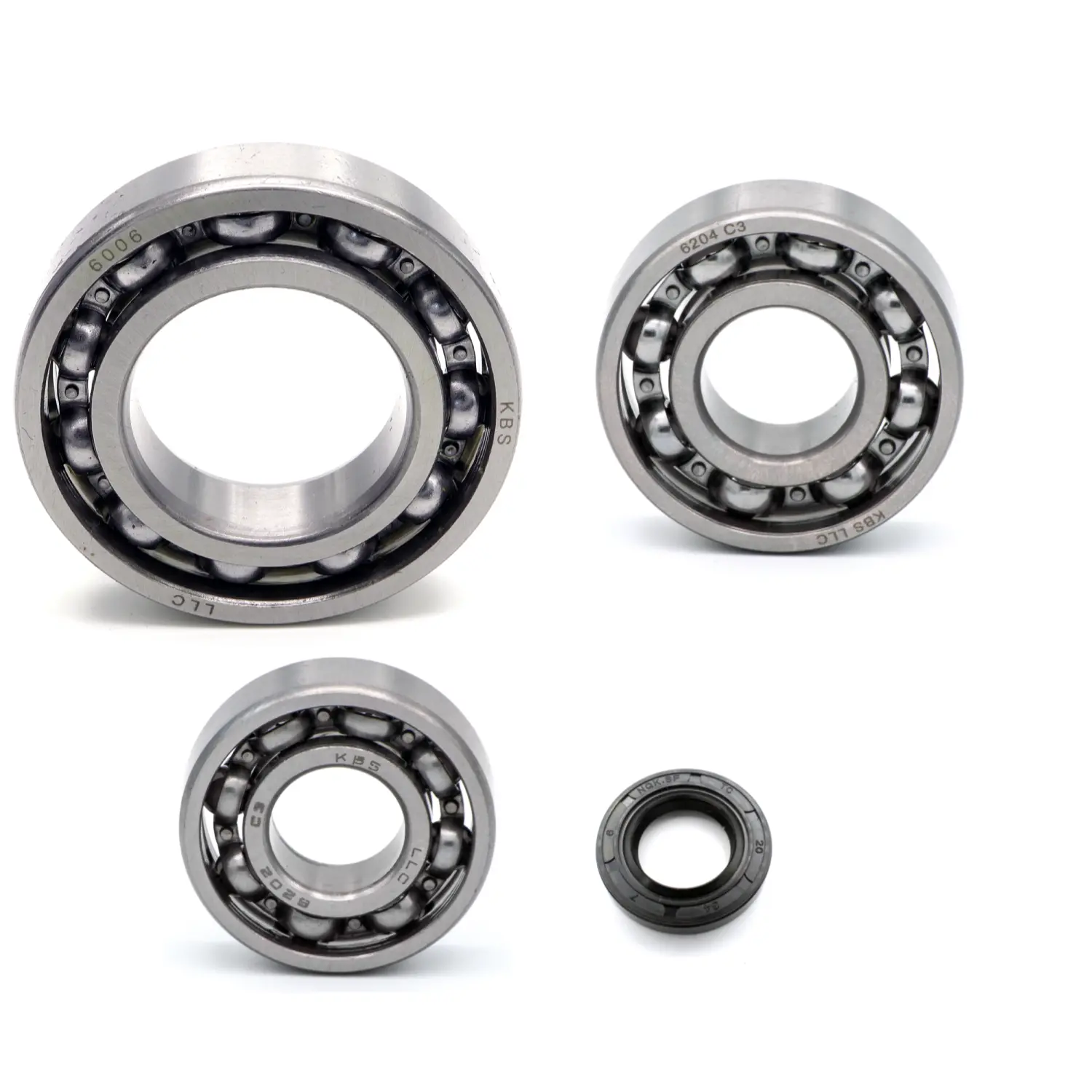

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 30x55x13mm transmission (part numbers: 96100-6006000)
1x deep groove ball bearing 15x35x11mm transmission (part numbers: 96120-6202000)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 91016-KPS-900)
1x oil seal 20x34x7mm transmission (part numbers: 91201-030-033)


Compatible with
CG 125 2004-2007
NX 125 2003-2004
XL 125 2003
XR 125 2003-2007
