Gearbox bearing compatible with Arctic Cat 250 UTILITY 2X4 AUTOMATIC RED 250 UTILITY RED

High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.

Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

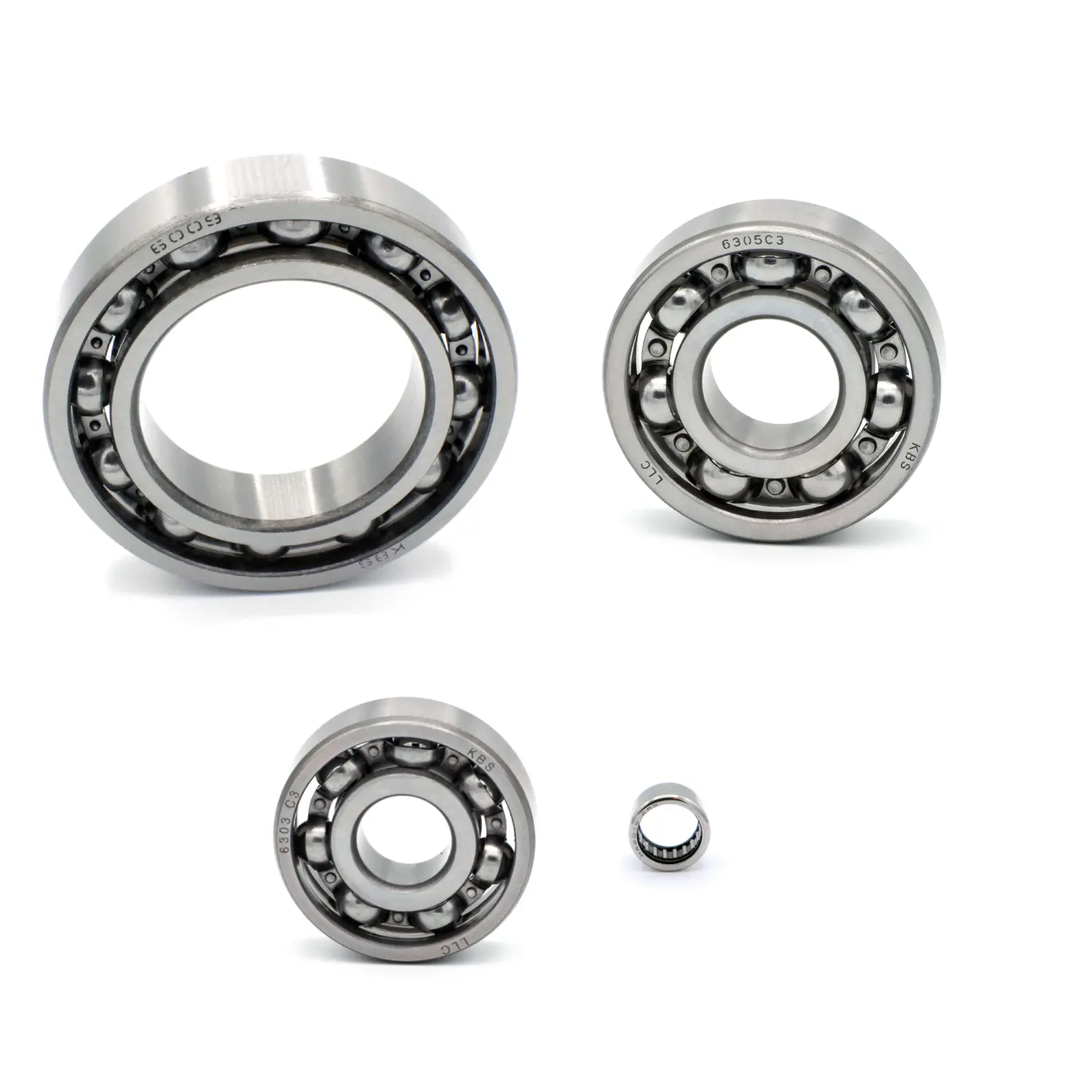

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 45x75x16mm transmission (part numbers: 3304-194)
1x deep groove ball bearing 17x47x14mm transmission (part numbers: 3304-197)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 3304-067)
1x drawn cup needle roller bearing 20x26x16mm transmission (part numbers: 3304-074)


Compatible with
250 UTILITY 2X4 AUTOMATIC RED 250 2009
250 UTILITY GREEN 250 2006-2008
250 UTILITY RED 250 2006-2008
300 2X4 UTILITY 300 2016
300 2X4 UTILITY BLACK 300 2013
300 2X4 UTILITY GREEN 300 2011
300 2X4 UTILITY INTERNATIONAL RED 300 2014-2015
300 2X4 UTILITY RED 300 2010-2015
ALTERRA 300 BLACK 300 2020
ALTERRA 300 BLUE 300 2021
ALTERRA 300 COYOTE TAN 300 2022
ALTERRA 300 GREEN 300 2017-2018
ALTERRA 300 RED 300 2017-2018
