High quality piston pin bearing in OEM quality for your vehicle.
The product was assembled and inspected in Germany.
The connecting rod bearing supports the piston with the piston pin in the connecting rod eye of the crankshaft. Due to the needles as rolling elements, it is suitable for the highest impact loads, which is caused by the explosive combustion of the gasoline-air mixture. Via the connecting rod bearing, the stroke movement of the piston is converted into a rotational movement of the crankshaft.
Only high-quality components from reputable manufacturers are used.
Included in this bearing set is a high quality connecting rod bearing:

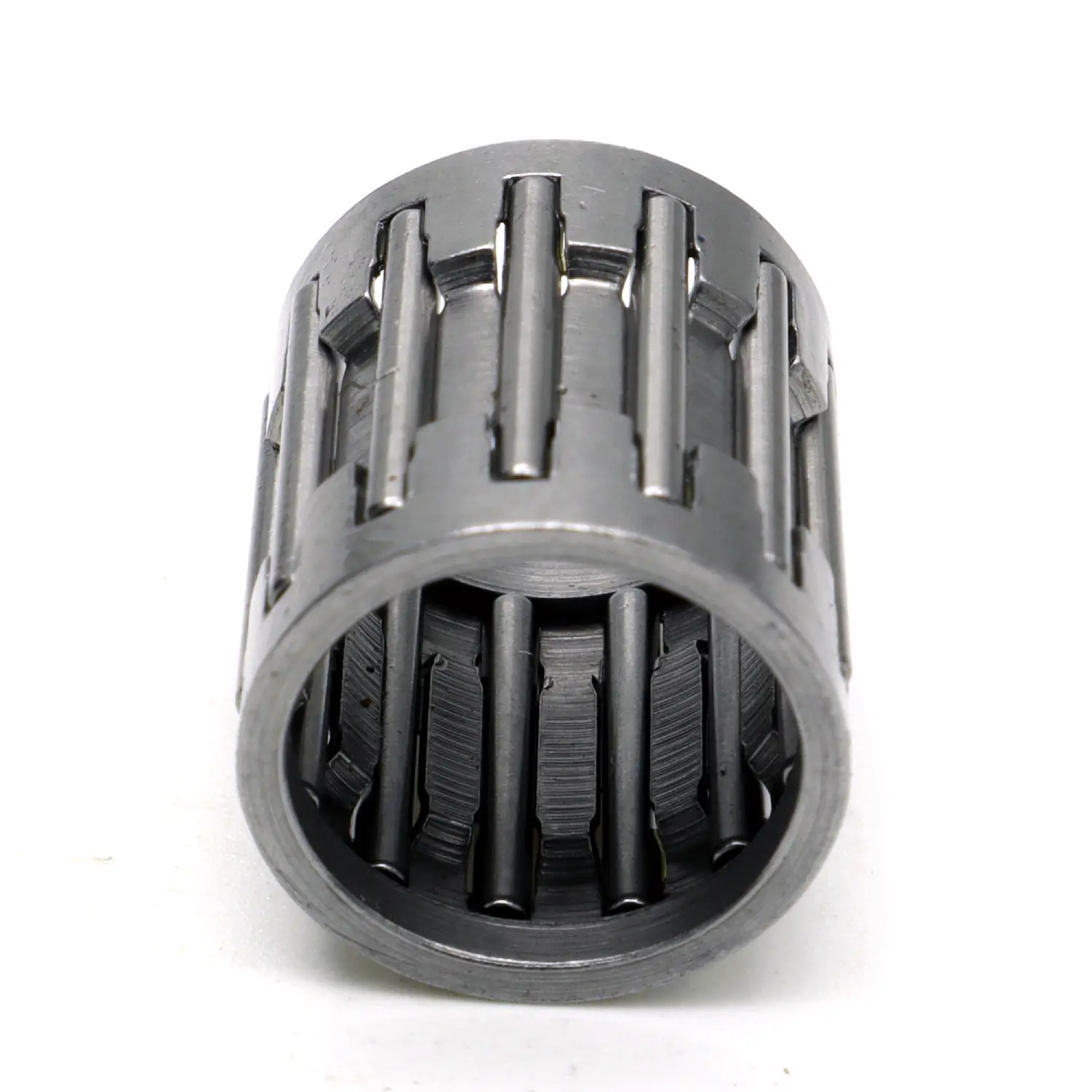

1x needle roller and cage assembly needle bearing 12x15x17mm connecting rod small end (part numbers: 93310-11268-00, 93310-11268)
Compatible with
CH80 80 1992
CY90 90 1991
DT50LC 50 1994-2000
DT50M 50 1986-1987
DT50MX 50 1986-1992
DT50R 50 1989-1996
DT5OR 50 1989
DT80 80 1987
FS1 50 1987-1989
LB50 50 1988-1990
PW80 80 1986-2011
PW80W 80 2007
PW80X 80 2008
PW80Y 80 2009
RD50 50 1986
RD50M 50 1977
RZ50 50 1998
SV80 80 1989
SV80E 80 1988
TY80 80 1987
TZ125H 125 1981
TZR50 50 1990
YE80 80 1995
YSR50 50 1987
YSR50T 50 1987
YSR80 80 1988-1991
The product was assembled and inspected in Germany.
The connecting rod bearing supports the piston with the piston pin in the connecting rod eye of the crankshaft. Due to the needles as rolling elements, it is suitable for the highest impact loads, which is caused by the explosive combustion of the gasoline-air mixture. Via the connecting rod bearing, the stroke movement of the piston is converted into a rotational movement of the crankshaft.
Only high-quality components from reputable manufacturers are used.
Included in this bearing set is a high quality connecting rod bearing:
1x needle roller and cage assembly needle bearing 12x15x17mm connecting rod small end (part numbers: 93310-11268-00, 93310-11268)
Compatible with
CH80 80 1992
CY90 90 1991
DT50LC 50 1994-2000
DT50M 50 1986-1987
DT50MX 50 1986-1992
DT50R 50 1989-1996
DT5OR 50 1989
DT80 80 1987
FS1 50 1987-1989
LB50 50 1988-1990
PW80 80 1986-2011
PW80W 80 2007
PW80X 80 2008
PW80Y 80 2009
RD50 50 1986
RD50M 50 1977
RZ50 50 1998
SV80 80 1989
SV80E 80 1988
TY80 80 1987
TZ125H 125 1981
TZR50 50 1990
YE80 80 1995
YSR50 50 1987
YSR50T 50 1987
YSR80 80 1988-1991
